Absolute Thermal Immunity: Utilizing LiFePO4 26650 cell chemistry, the pack inherently eliminates risks of fire or explosion during mechanical shock, answering the zero-tolerance safety requirements of pediatric medical facilities.
Intelligent RS485 Telemetry: The closed-loop BMS transmits real-time temperature tracking and precise capacity data, enabling your exoskeleton’s controller to dynamically adjust bionic motor outputs.
Optimized Mechanical Footprint: Contained within a highly adaptive 75x75x230mm structure, offering engineers plug-and-play ease for confined robotic joint enclosures, with fully customizable connector options.
Next-Generation Power for Pediatric Rehabilitation Exoskeletons
Eliminating thermal runaway risks at the chemical level. The HIMAX 25.6V LiFePO4 battery pack combines 3000+ cycle longevity with dynamic RS485 telemetry, delivering an unyielding safety baseline for pediatric medical devices.
🔬 Uncompromising Electrochemical Architecture for Pediatric Safety
When designing power solutions for pediatric paraplegia and cerebral palsy rehabilitation exoskeletons, mechanical and chemical safety takes absolute precedence. Standard lithium-ion chemistries introduce unacceptable thermal runaway vulnerabilities. The HIMAX 25.6V battery pack utilizes a highly stable LiFePO4 (LFP) 26650 cell architecture (8S2P). At the electrochemical level, the robust covalent P-O bonds in the LFP cathode structure render the battery inherently immune to explosion or combustion, even under severe mechanical abuse such as drops or crushing. Beyond immediate safety, this robust chemistry dramatically slows continuous float degradation, yielding over 3000 operational cycles at 80% Depth of Discharge (DOD). The entire cell manufacturing framework aligns strictly with global UN38.3 and UL safety baselines, ensuring your final medical device easily passes rigorous institutional evaluations.
⚙️ Seamless Hardware Integration and Dynamic BMS Customization
Field engineers developing compact bionic joints face profound spatial constraints and unpredictable load profiles. The HIMAX exoskeleton pack is dimensionally optimized to a compact ~75x75x230mm footprint, making it ideal for integration into streamlined robotic lumbar or femoral enclosures without causing center-of-gravity shifts. Beyond its physical dimensions, the true value lies in its intelligent power delivery logic. The integrated Battery Management System (BMS) communicates via an RS485 protocol, allowing the host exoskeleton’s MCU to conduct closed-loop monitoring of internal cell temperatures and State-of-Charge (SOC). This prevents transient voltage drops during sudden bionic motor engagements. As an OEM/ODM partner, HIMAX offers full customization of wiring harnesses, connector interfaces, and BMS threshold parameters to perfectly match your specific charging rail logic and hardware envelope.
Specifications

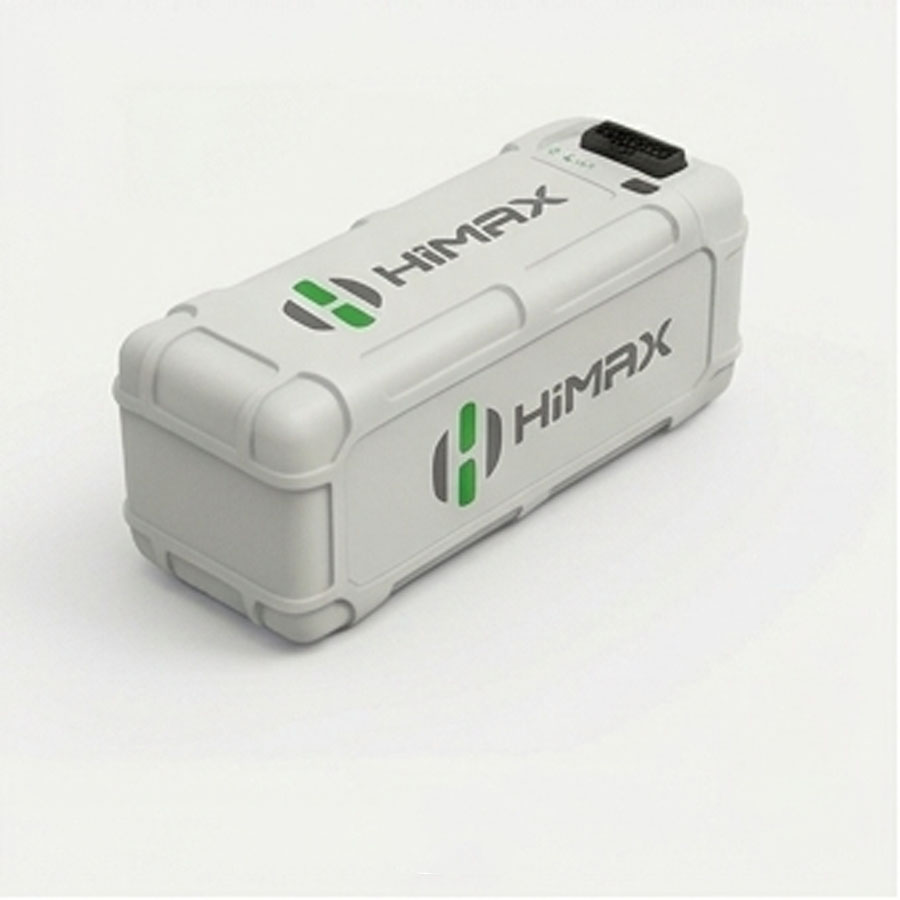

HIMAX 25.6V 6.6Ah 26650 LFP Battery Pack
2. Battery Type / Chemistry
LiFePO4 (LFP) High-Safety Medical Grade
3. Cell Configuration / Model
8S2P / 26650 Cylindrical Cells (3.2V 3300mAh)
4. Nominal Voltage
25.6V
5. Fully Charged Voltage
29.2V
6. Discharge Cut-off Voltage
20.0V (Adjustable via customized BMS
7. Nominal Capacity
6.6Ah
8. Total Rated Energy
168.96Wh
9. Internal Resistance (IR)
≤ 120mΩ
10. Standard Charging Current/Method
1.32A (0.2C) using CC/CV
11. Max Charging Current
3.3A (0.5C)
12. Max Continuous Discharge Current
6.6A (1C)
13. Peak Pulse Discharge Current
19.8A (3C) for ≤ 3 seconds
14. Operating Temp (Discharge)
-20°C to +60°C
16. Cycle Life
≥ 3000 Cycles @ 80% DOD

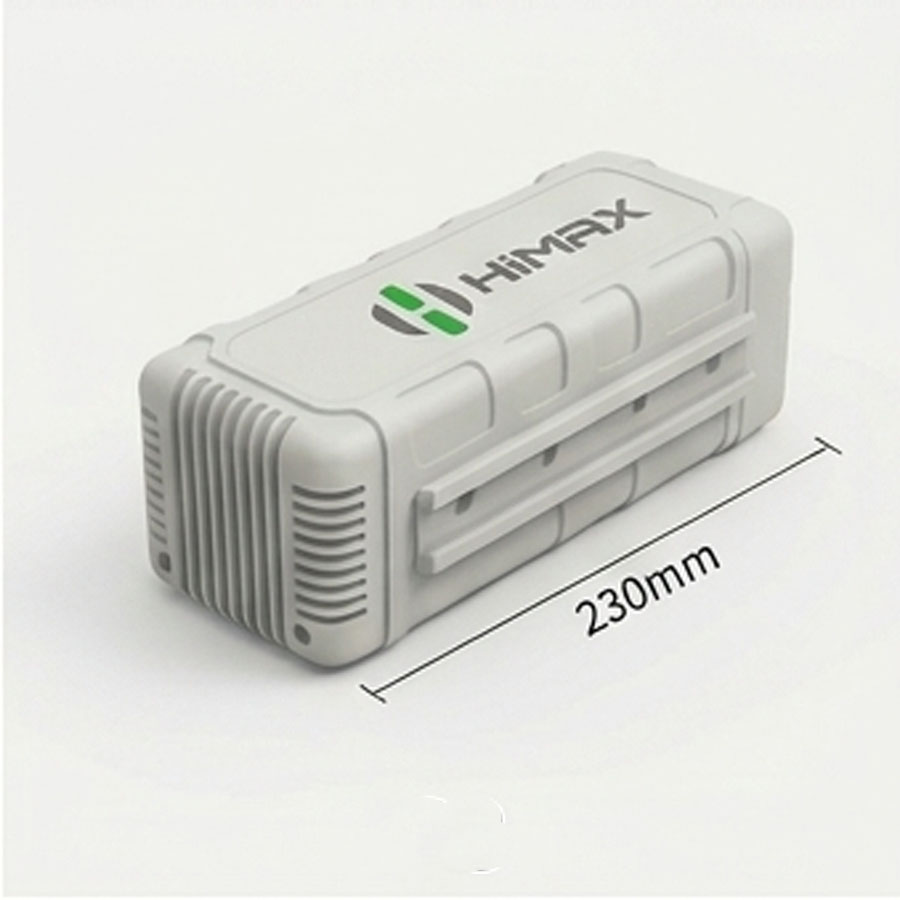

18. Physical Dimensions
~ 75mm (T) × 75mm (W) × 230mm (L) - Customizable
19. Approximate Weight
~ 1.45 kg
20. Outer Wrapping Material/Shell
Medical-Grade PVC Shrink (Custom hard-cases available

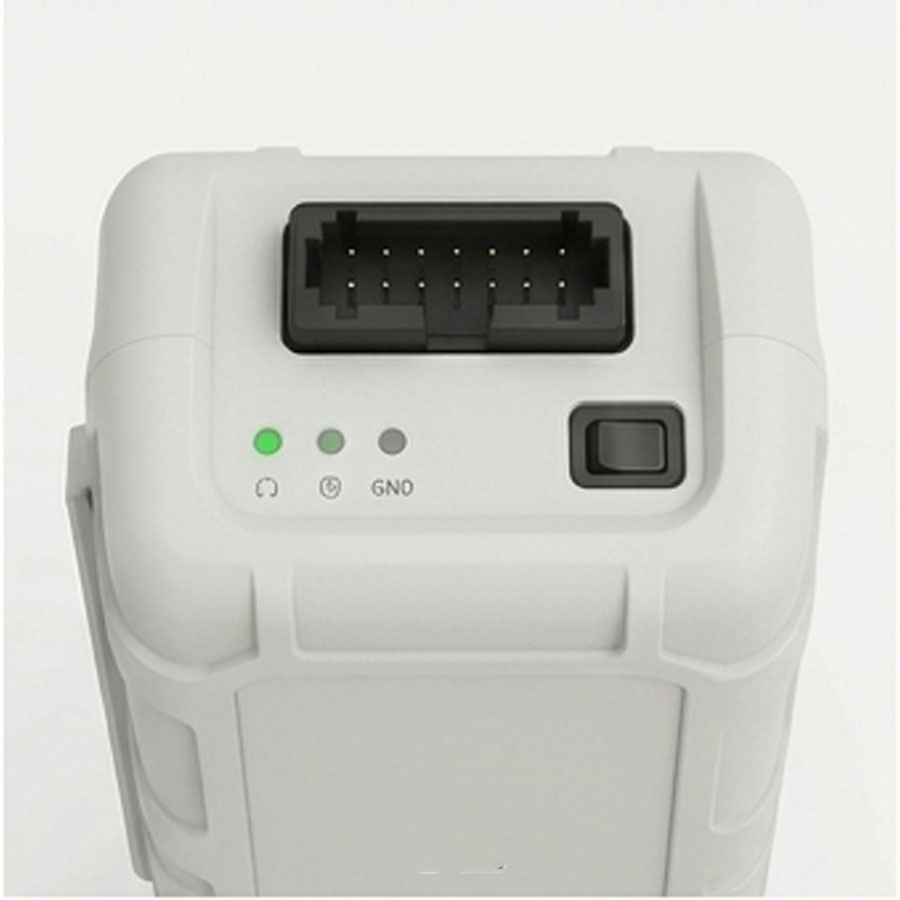

21. Standard Connector & Comms
Bare leads / Customized plugs; RS485 Protocol for SOC/Temp
22. Global Export Compliance Alignment
Conforms with UN38.3, MSDS, IEC baselines
Frequently Asked Questions
When designing power architecture for pediatric life-assist devices, engineers must eliminate guesswork. The following FAQ matrix addresses the most critical technical inquiries regarding the electrochemical properties, system integration, and hardware lifecycles of the HIMAX 25.6V LFP exoskeleton battery pack.
How does the cell-level chemistry ensure absolute safety against physical impact or thermal events in a pediatric medical setting?
Standard lithium-ion packs are prone to thermal runaway if punctured or over-stressed. We specifically selected the LiFePO4 (LFP) chemistry for this 8S2P configuration because its olivine crystal structure is highly stable. Even if the exoskeleton sustains a severe drop, the cells will not explode or ignite, comfortably satisfying the rigorous safety prerequisites of pediatric rehabilitation centers.
Bionic motors require high transient loads. How does this battery handle sudden electrical voltage drops during motor actuation?
Exoskeleton actuators draw immediate peak current to mimic human movement. The HIMAX pack is engineered to support a peak pulse discharge of 19.8A (3C) for up to 3 seconds. The low internal resistance (≤ 120mΩ) paired with our customized BMS prevents severe voltage sag under these transient loads, ensuring uninterrupted power to the host controller.
Medical equipment often sits idle or on chargers for extended periods. How do you mitigate long-term degradation and trickle-charge stress?
The integration of LFP cells inherently resists capacity fade from continuous floating voltage. Furthermore, our specialized BMS firmware strictly controls the 29.2V charge cut-off point, mitigating micro-cycling damage. This results in an operational lifespan of over 8 years and guarantees ≥3000 cycles at 80% DOD, drastically reducing maintenance costs for medical facilities.
Can the dimensions and wiring harnesses be tailored to match the specific, confined joints of our proprietary exoskeleton hardware?
Absolutely. While the nominal footprint is approximately 75x75x230mm, HIMAX provides comprehensive OEM/ODM structural modifications. We can adapt the outer wrapping, redesign the internal cell matrix shape, and equip specific wire gauges (AWG) and medical-grade connector interfaces to ensure seamless physical plug-and-play integration into your robotics chassis.
How does the RS485 communication protocol interact with the host exoskeleton's main logic board during charge and discharge cycles?
The onboard BMS uses the RS485 protocol to establish a continuous handshake with the exoskeleton’s MCU. It actively transmits real-time pack voltage, state-of-charge (SOC), and localized cell temperatures. This data allows your host logic to intelligently throttle motor output if limits are approached or trigger proactive failover safety mechanisms before a complete physical shutdown is required.
