Boost device efficiency with HiMAX 21700 Battery Packs, designed for high energy density, stable output, and long-lasting industrial performance.
Showing all 5 results

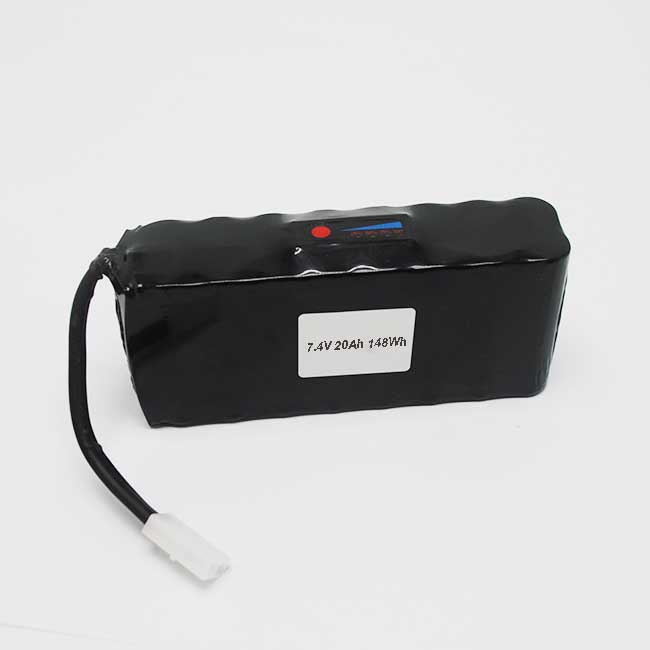

Config: 2S5P · Energy: 148Wh · Discharge: −20°C to 60°C · Cycle life: 300+
An electric bicycle brand needed a high-capacity, lightweight battery to extend per-charge range without increasing frame weight. HIMAX assembled 21700 cells in a 2S5P layout, delivering 7.4V nominal voltage and 20Ah capacity (148Wh). The five-parallel configuration reduces per-cell stress and voltage sag under load, supporting the motor’s peak current demand during acceleration. Max charge and discharge currents are both 3A per cell, with a working temperature range of −20°C to 60°C for year-round reliability. The slim cylindrical pack is sized to fit within the bike’s down tube housing with custom connector and wire length.

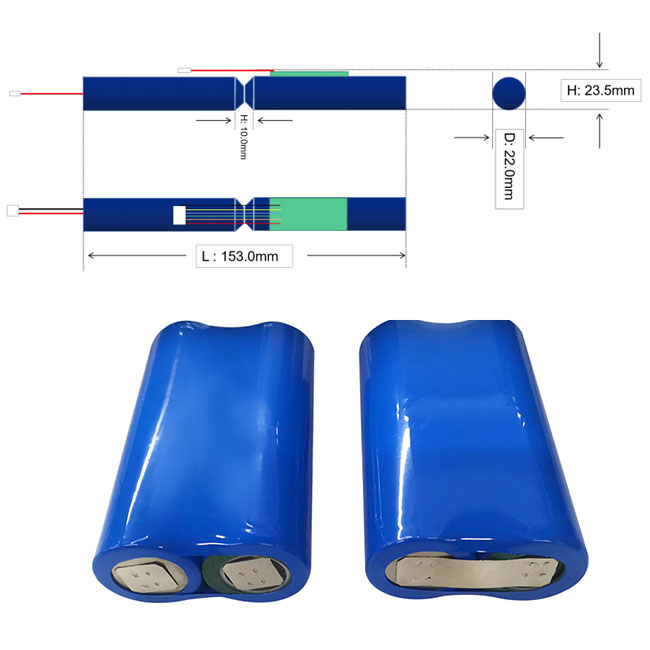

Model: HLIGB02-0005-1447 · Energy: 36Wh · Dimensions: H23.5×D22×L153mm · Weight: 140g
A logistics equipment supplier needed a reliable, long-shift battery for handheld barcode scanners used in warehouse environments. HIMAX supplied an INR21700-50E 2S1P pack at 7.2V / 5Ah (36Wh), weighing just 140g and measuring 153mm — engineered to fit inside the scanner’s grip handle. The three-level overcharge and over-discharge PCM ensures safe operation across a full 8-hour shift. Max continuous discharge is 3A; the −20°C to 60°C operating range handles both cold-storage warehouses and outdoor dock areas. Certified to GB/T18287-2013, UL1642, and CE61960.
Model: 36-4BP · Cell: Samsung INR21700-40T · Energy: 14.4Wh · Dimensions: D22×H75.6mm
A consumer electronics OEM required a high-drain single-cell pack for a regulated vaping mod demanding instantaneous high current. HIMAX supplied a Samsung INR21700-40T 1S1P pack at 3.6V / 4000mAh (14.4Wh), with a max continuous discharge of 4A and an internal impedance of ≤15mΩ — minimising voltage drop at peak draw. The compact D22×75.6mm form factor is a direct fit for standard 21700 mod tube housings. The PCM provides overcharge protection (4.28V cutoff) and over-current protection (8–16A trip). Certified to GB/T18287-2013, UL1642, and CE61960.
Meet exclusive needs
Quality assurance
Class A battery manufacturer
Offer the best ex factory price
Your valuable comments are the driving force of our growth, welcome to negotiate with us at any time. After 20 years of growth we have been the best battery manufacturer, in Himax you can enjoy the most professional service, the best price and the best quality.
