Power reliable devices with HiMAX 18650 Battery Packs. Built for high performance, long cycle life, and custom solutions for industrial applications.
Showing all 7 results

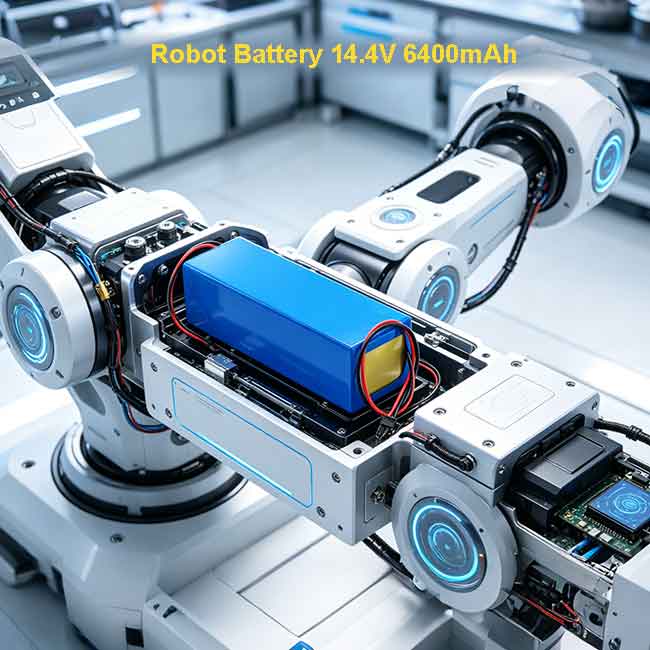

Model: 144-64BP · Connector: Molex 46992-0220 · Enclosure: Blue PVC
A robotics manufacturer required a compact, high-reliability 18650 battery pack to power joint-actuator systems during continuous autonomous operations. The custom requirement called for Samsung 35E cells in a 4S2P configuration — 14.4V nominal voltage, 6400mAh capacity, and 92.16Wh energy output — with a BMS featuring cell balancing, 60°C thermal cutoff, and 3A over-current protection. Max charge and continuous discharge current are both capped at 2A. The pack is housed in a blue PVC enclosure (42×39×134mm) with 20AWG RoHS-certified wiring, tailored to fit within the robot’s structural frame.

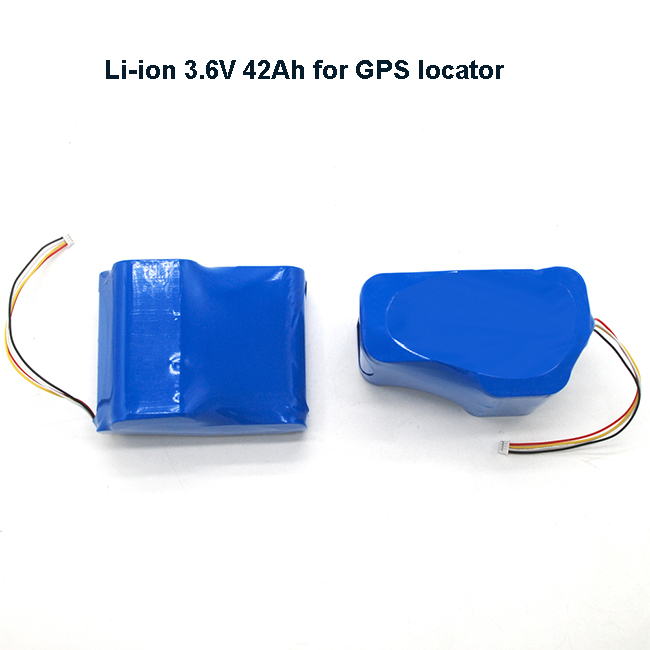

Model: 36-42BP · I²C smart BMS · Connector: Molex 0510210400
A North American fleet-tracking company needed an ultra-high-capacity 18650 battery pack to keep GPS locators online for weeks without recharging. The custom design uses Samsung 35E cells in a 1S12P configuration, delivering 3.6V nominal voltage, 42Ah capacity, and 151.2Wh total energy. The integrated smart BMS supports I²C communication for real-time state-of-charge reporting, with a precise voltage window of 3.0V–4.28V. Charge current is 2A; continuous discharge is 1A with a 1.5A peak. The pack is wrapped in blue PVC with 120mm leads, custom-sized to fit the tracker’s housing without modification.

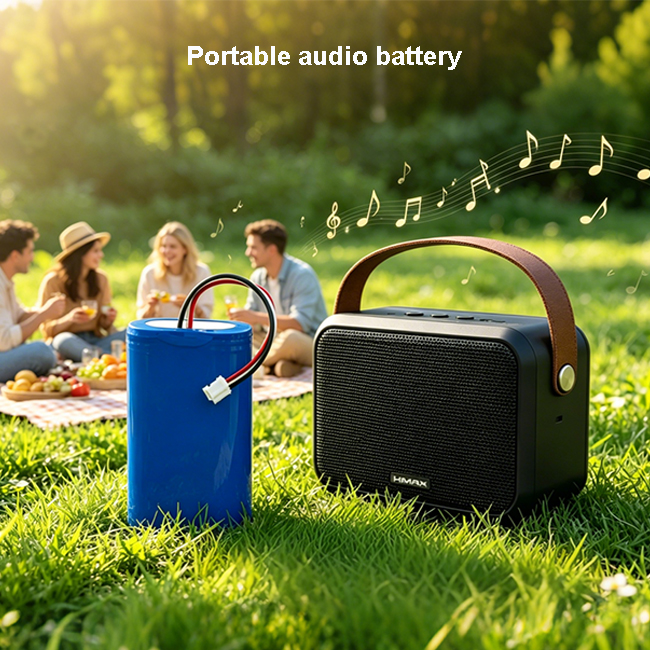

Model: HLI-GB01-5A20 · PCM protection · Connector: Molex 5246-0300
A consumer electronics brand needed a slim, lightweight custom battery pack for a portable Bluetooth speaker requiring all-day playback. The solution uses 18650-2600 cells in a 1S2P layout — 3.7V nominal voltage, 5200mAh capacity, and 19.24Wh energy — packaged in a compact 67.5×37×20mm footprint weighing approximately 93g. The PCM circuit provides overcharge protection (4.3V cutoff), over-discharge protection (2.5V cutoff), and short-circuit safeguards. Standard charge is 1A at 4.2V; max continuous discharge is 2A. The pack is rated for 300+ cycles at 70% SoC and certified to GB/T18287-2013, UL1642, and CE61960.
Meet exclusive needs
Quality assurance
Class A battery manufacturer
Offer the best ex factory price
Your valuable comments are the driving force of our growth, welcome to negotiate with us at any time. After 20 years of growth we have been the best battery manufacturer, in Himax you can enjoy the most professional service, the best price and the best quality.
