💠 Bridging the Power Gap: Engineering the Lifeline for Pneumatic Soft Robotics

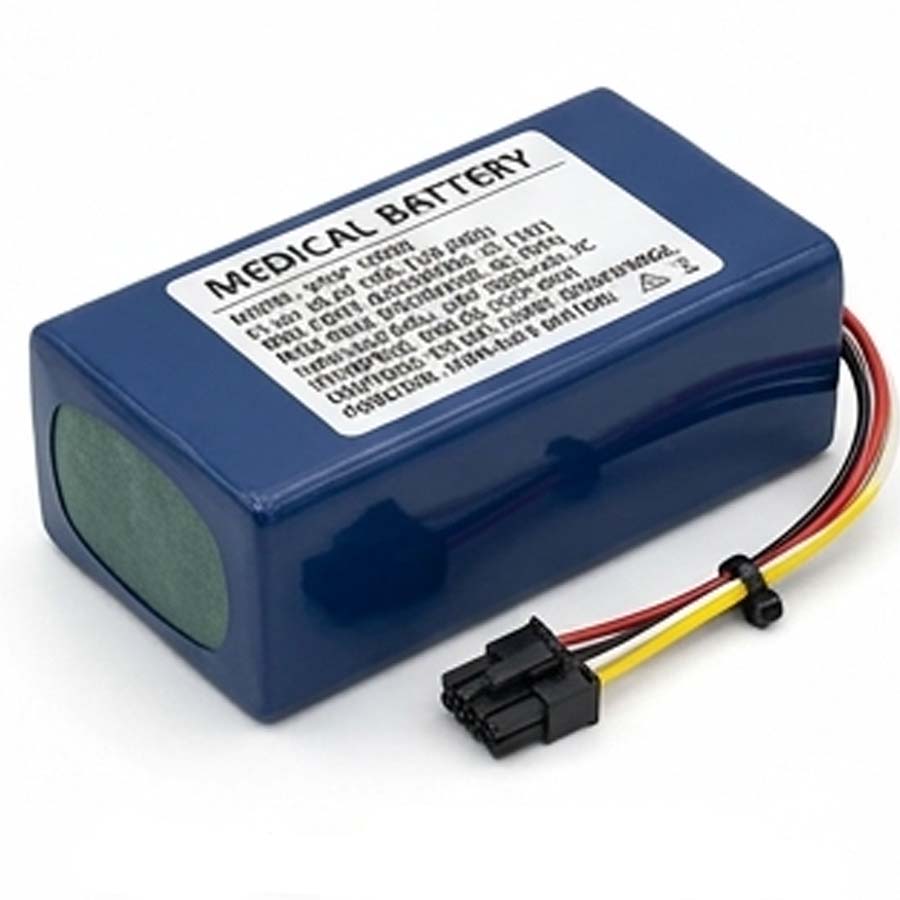

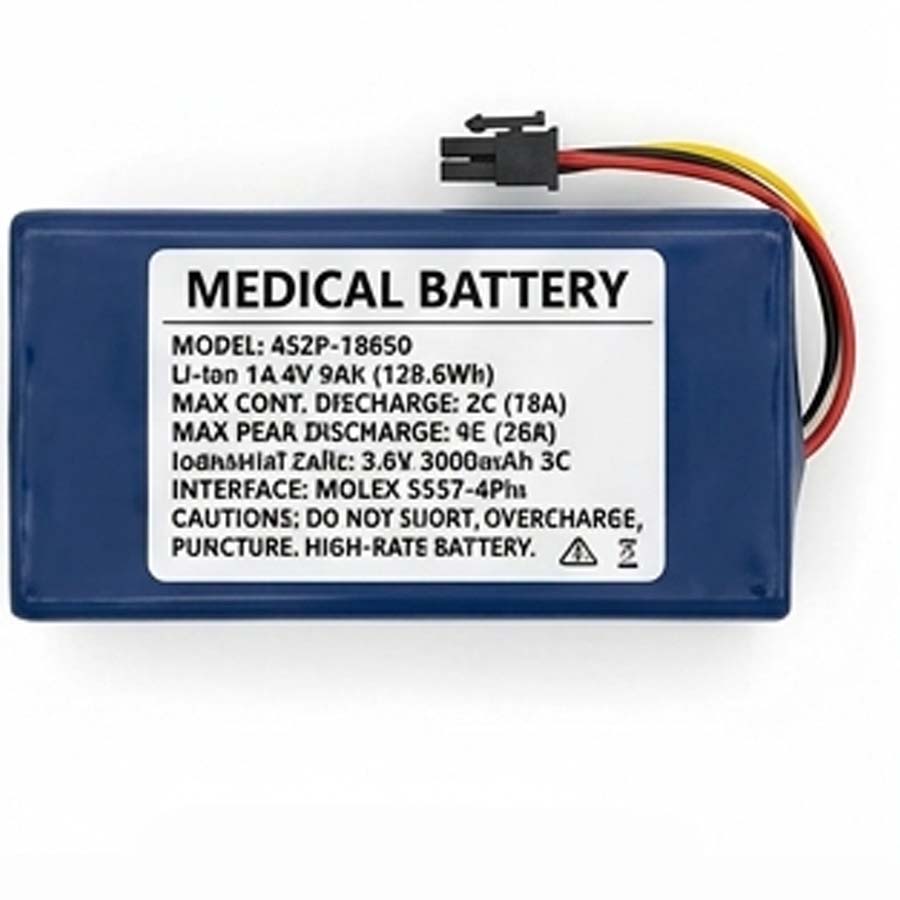

In modern mirror-therapy forearm and hand rehabilitation devices, power stability is where the real engineering challenge lies. When the patient’s healthy hand triggers the data glove, causing the affected hand’s pneumatic soft exoskeleton to inflate, the internal micro coreless air compressor, vacuum pump, and multiple electric solenoid valves ignite simultaneously. This creates a severe, high-frequency continuous medium-to-large current load. Generic battery packs easily suffer from instantaneous voltage drops, causing erratic robotic behavior or premature cell degradation. To eliminate this critical clinical risk, our engineering team at HIMAX built this industrial-grade Li-ion 4S3P power module utilizing high-rate 18650 cells (3.6V 3000mAh, 3C continuous discharge). Delivering a stable nominal 14.4V and a robust 9Ah (129.6Wh) capacity, this pack comfortably sustains a 2C (18A) continuous draw and unleashes a spectacular 4C (36A) instantaneous burst. It seamlessly absorbs massive inrush currents, guaranteeing a smooth, uninterrupted therapeutic experience for the end user.
🔬 Precision Telemetry & Rugged Structural Integrity for Clinical Trust

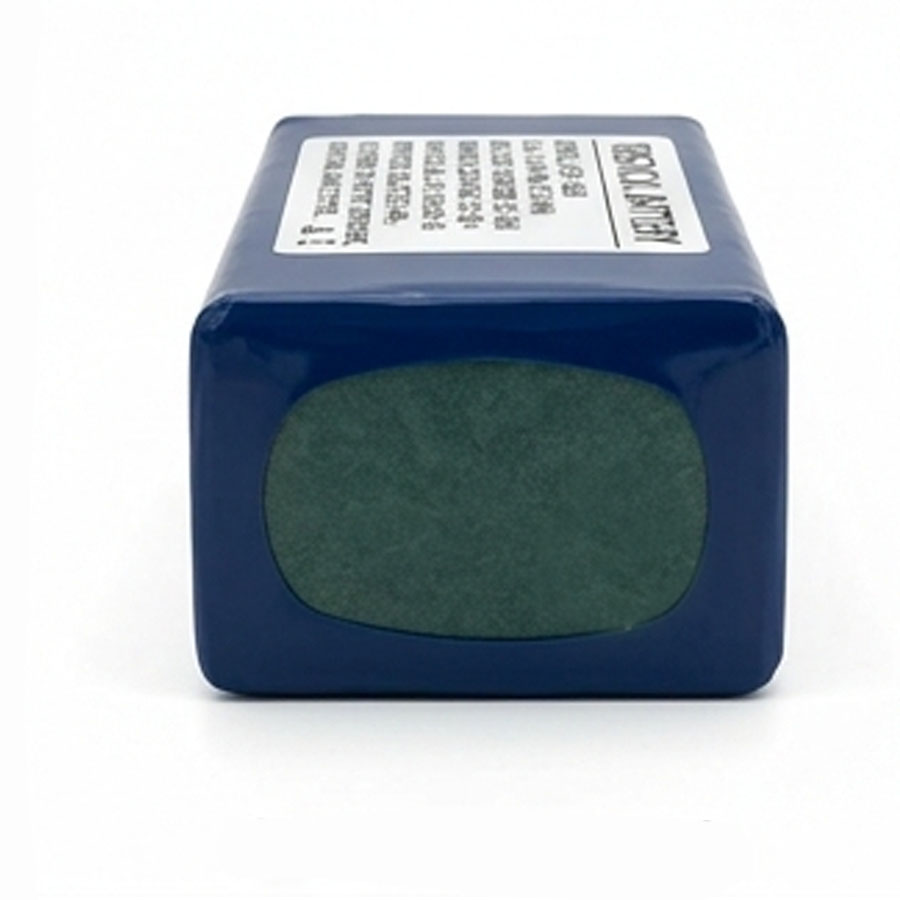

Medical environments demand absolute safety and non-negotiable component longevity. Long-term, continuous pumping cycles inevitably generate localized internal heat, which threatens individual cell health if unmanaged. Addressing this, we integrated a standard I2C communication bus paired with an advanced Seiko protection IC into the smart BMS. This setup provides the device’s host processor with real-time telemetry and active cell balancing, effectively preventing single-string over-discharge and localized overheating. Physically, we rejected fragile enclosures in favor of a standard rectangular, ultra-compact cell arrangement (~38.0mm x 68.0mm x 135.0mm) wrapped in a heavy-duty flame-retardant PVC heat-shrink film, further fortified by an internal epoxy resin insulating board sandwich interlayer for superior shock absorption. Manufactured in our ISO9001 certified facility and fully compliant with UN38.3 transport safety regulations, this battery is meticulously designed to meet and manufactured in accordance with strict medical device compliance standards and production requirements—making it the ultimate trusted power core for your global medical deployment.
Selecting the right power architecture for motion-heavy, pneumatic medical equipment involves navigating tough trade-offs between physical constraints, transient power spikes, and long-term thermal safety. Drawing from years of dedicated field engineering at HIMAX, we have mapped out the core technical hurdles faced by clinical hardware developers and answered how our specialized 14.4V pack resolves them.
How does this battery handle the high inrush current when multiple micro-pumps and solenoid valves start simultaneously?
This battery pack is purposefully engineered for dynamic pulse loads. Built on a premium 4S3P 18650 power-cell architecture, it delivers a massive 4C (36A) instantaneous burst discharge capability. This ensures that when coreless compressors and electric valves spike the current during startup, the battery maintains tight voltage regulation without triggering over-current safety shutoffs, protecting your device from sudden logic resets.
Continuous pneumatic pumping creates significant heat. How does the battery pack guarantee thermal safety inside a compact medical enclosure?
Thermal management is integrated at both the structural and electrical levels. Structurally, we use a specialized epoxy resin insulating board sandwich interlayer to isolate thermal transfers. Electronically, the integrated Seiko advanced protection IC constantly monitors temperatures and balances cell strings, preventing any individual cell from overheating during long therapy cycles.
What communication protocol does the BMS support, and how does it assist our device's main MCU?
The pack features a standard, highly reliable I2C communication bus. This allows your rehabilitation robot’s central processor to monitor real-time battery telemetry, including voltage distribution across strings, precise state-of-charge (SoC), and real-time safety alerts. This data stream integrates seamlessly into smart feedback loops required by advanced mirror-therapy software.
Can the physical size, PVC wrapping, and connector interfaces be customized to fit our existing rehabilitation robot chassis?
Absolutely. While our standard dimensions are a compact 38.0mm × 68.0mm × 135.0mm with JST-XHP-4 or Molex 5557-4Pin connectors, HIMAX specializes in full-service OEM/ODM customization. We can modify the layout, structural insulation, and harness configuration to align perfectly with your internal mechanical constraints.
Does this battery pack meet international shipping and medical manufacturing compliance standards?
Yes, our production plant operates strictly under the ISO9001 quality management system, and the pack is fully certified under UN38.3 for safe international air and sea transport. Furthermore, all components and structural materials are sourced and manufactured in strict compliance with global medical device safety regulations and environmental standards.
