LiFePO4 Battery 24V 100Ah

Nominal Voltage
6.4V

Nominal Capacity
4.5Ah



Applications:
SLA, Lead Acid Battery Replacement, Solar systems, RV, Yachts

LiFePO4 Batteries

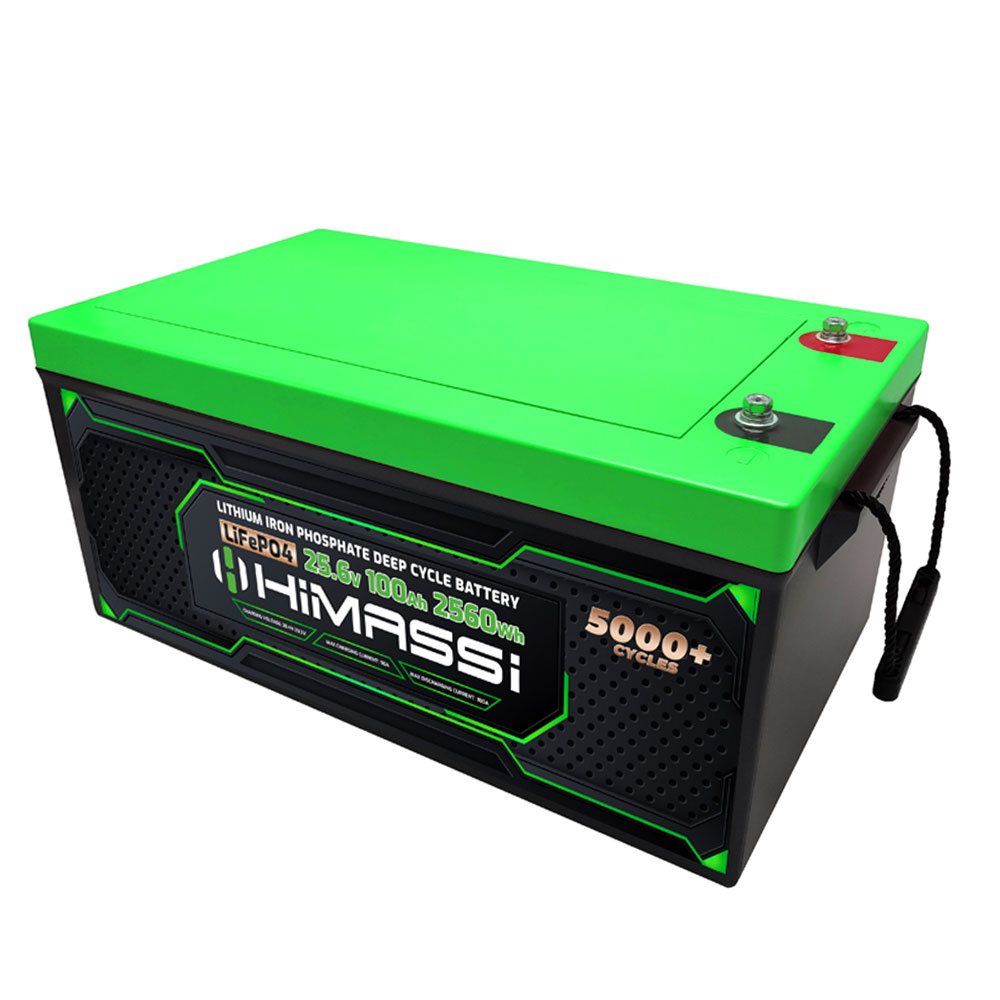

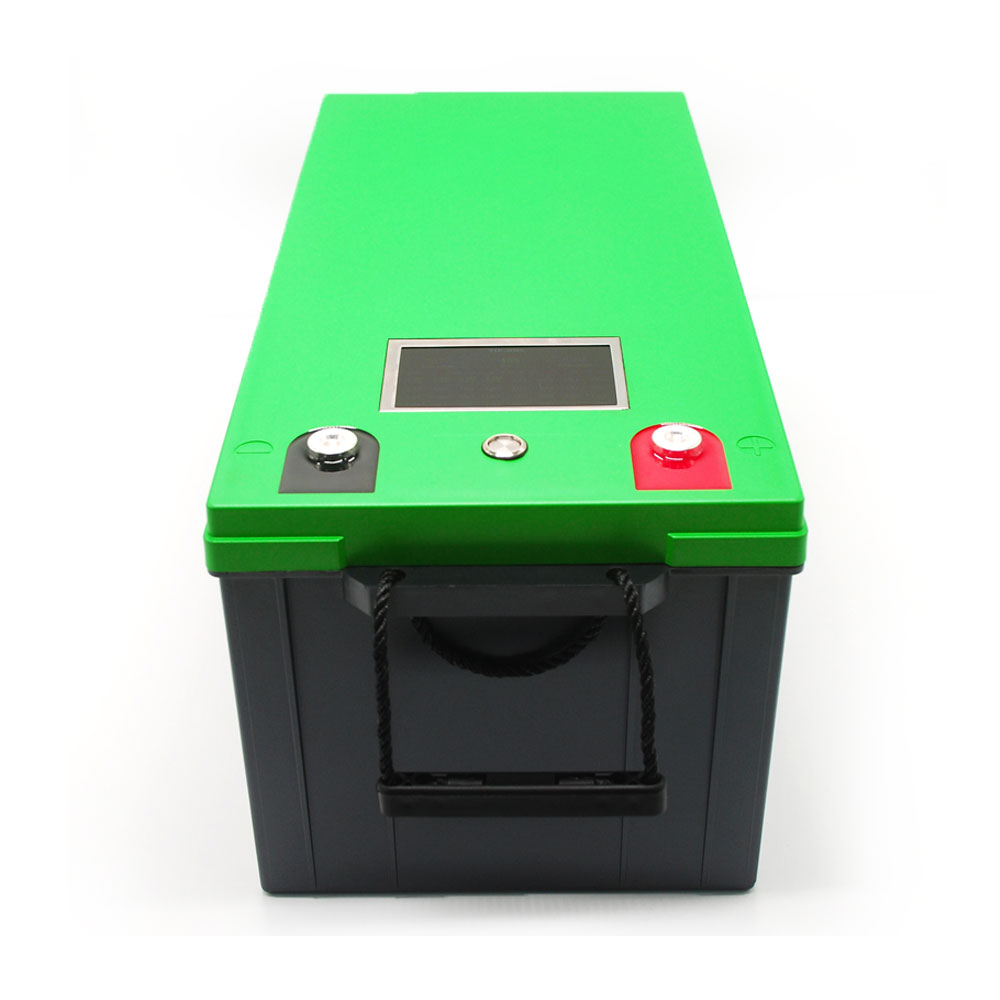

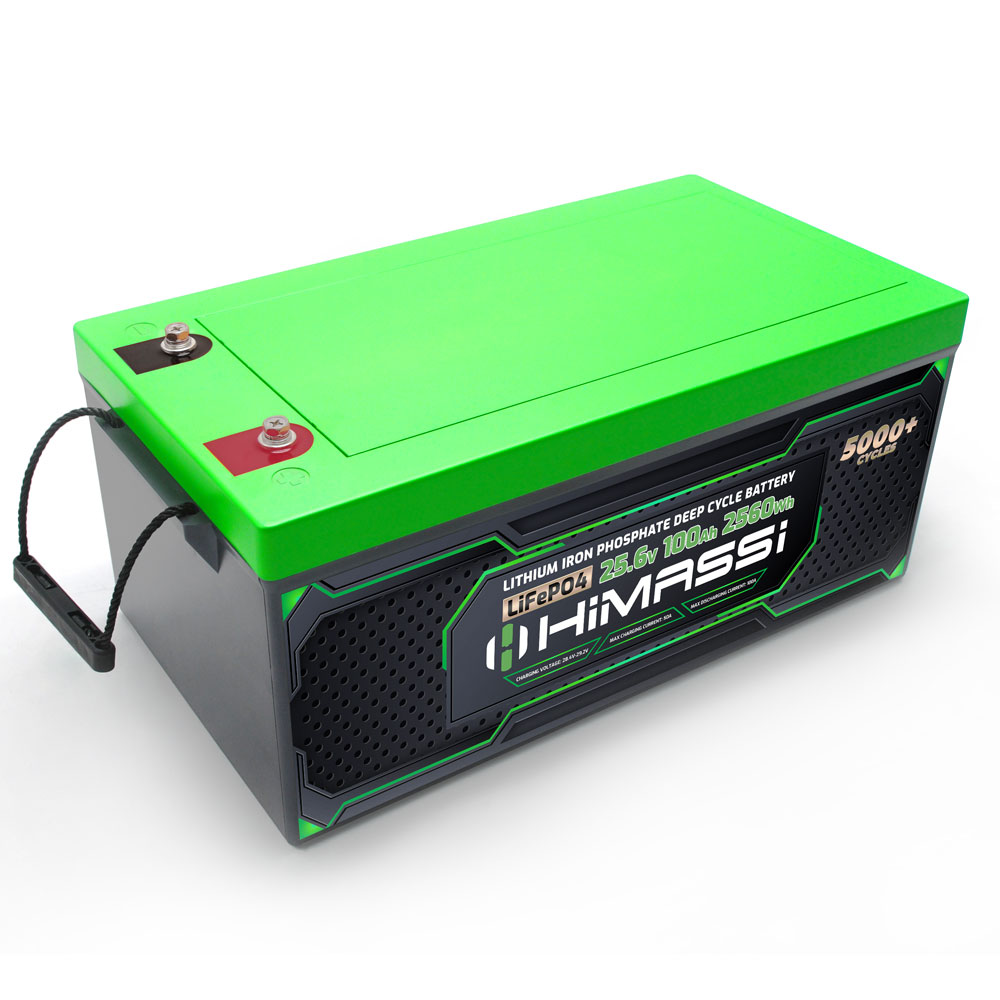

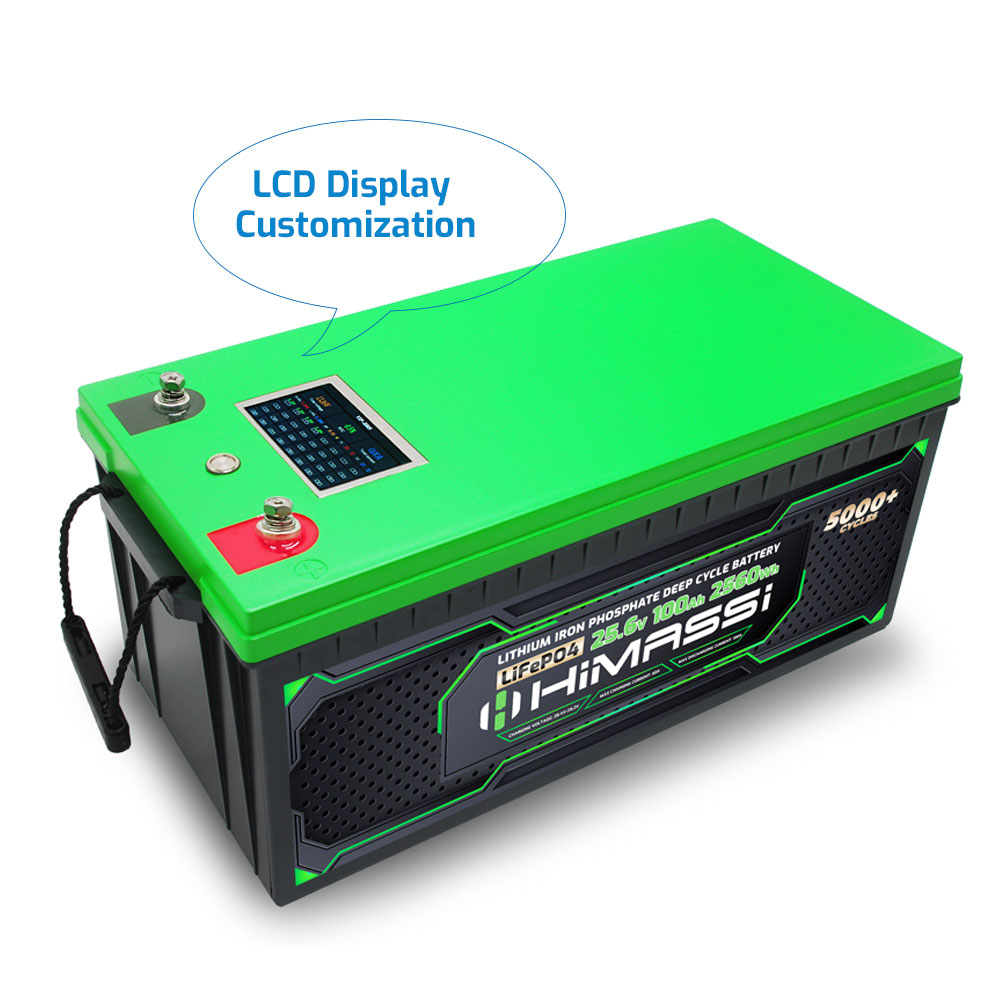

25.6V 100Ah LiFePO4 Battery

Cruising Made Easy with Lighter Power

LiFePO4 battery 25.6V 100Ah built-in automotive-grade prismatic battery cells (Grade A) help reduce the overall weight of your 24V batteries to ensure a faster & smoother cruising experience.

Strict Protection & Speedy Charging

LiFePO4 battery 24V 100Ah has built-in 100A BMS to protect it from overcharge, over-discharge, over-current, high-temperature, and short circuits. Operating Temp: Charge: 0°C~50°C; Discharge: -20°C~60°C. Besides, a 29.2V 20A dedicated lithium charger is recommended, it will just cost you 5 hours to have your lithium battery fully charged.

Specifications

LiFePO4 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery
Nominal Voltage
25.6V
Nominal Capacity
100Ah
Energy
2560Wh
Cycle Life
>2000 cycles @0.2C 100%DOD
BMS Functions
Over charge, over discharge, over current, short circuit and temperature protection
Charge Voltage
28.4V-29.2V
Charge Mode
0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV)
Charge Current
20A
Max. Charge Current
50A
Standard Discharge Current
20A
Max Continuous Discharge Current
100A
Discharge Cut-off Voltage
20V±0.5V
Storage Temperature
-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class
IP65
Plastic Case
ABS
Approx. Dimensions
L522XW240xH218mm
Approx. Weight
23.5kG

Frequently Asked Questions

HimaxBattery is an excellent battery manufacturer, we support best factory price and customized service.
1: What are LiFePO4 (Lithium Iron Phosphate) Batteries?
LiFePO4 (Lithium Iron Phosphate) batteries are a type of deep cycle lithium-ion rechargeable battery known for their high energy density, long lifespan, and enhanced safety characteristics. They use lithium iron phosphate as the cathode material, which offers several advantages over other types of phosphate-based lithium-ion battery.
2: Are LiFePO4 batteries safe?
Yes, LiFePO4 batteries are considered safe due to their stable chemistry and thermal stability. They are less prone to thermal runaway, overheating, and fire risks compared to some other lithium-ion chemistries.
3: What are the advantages of deep cycle LiFePO4 (Lithium Iron Phosphate) batteries?
The advantages of LiFePO4 batteries include enhanced safety, long cycle life, high thermal stability, fast charging capability, high power density, environmental friendliness, low self-discharge rate, and maintenance-free operation. These features make them well-suited for a wide range of applications, including electric vehicles, renewable energy storage systems, backup power systems, and portable electronics.
4: What are the typical applications of LiFePO4 batteries?
LiFePO4 batteries are commonly used in a variety of applications, including electric vehicles (EVs), solar energy storage systems, marine propulsion, RVs, backup power systems, and portable electronics.
5: Can LiFePO4 batteries be replacement for Lead-Acid batteries?
Yes, LiFePO4 batteries can be used as a drop-in replacement for lead-acid batteries in many applications. They offer several advantages over lead-acid batteries, including higher energy density, longer cycle life, and faster charging capabilities.
