Li 18650‑3200 14.8V 3.2Ah Lithium‑Ion Battery Pack 4S1P, 6A Continuous

Category LiFePO4 Battery

Nominal Voltage
14.8V

Nominal Capacity
3.2Ah

Energy
47.36Wh

INQUIRY TO BUY

Description
Specifications
FAQs
Download

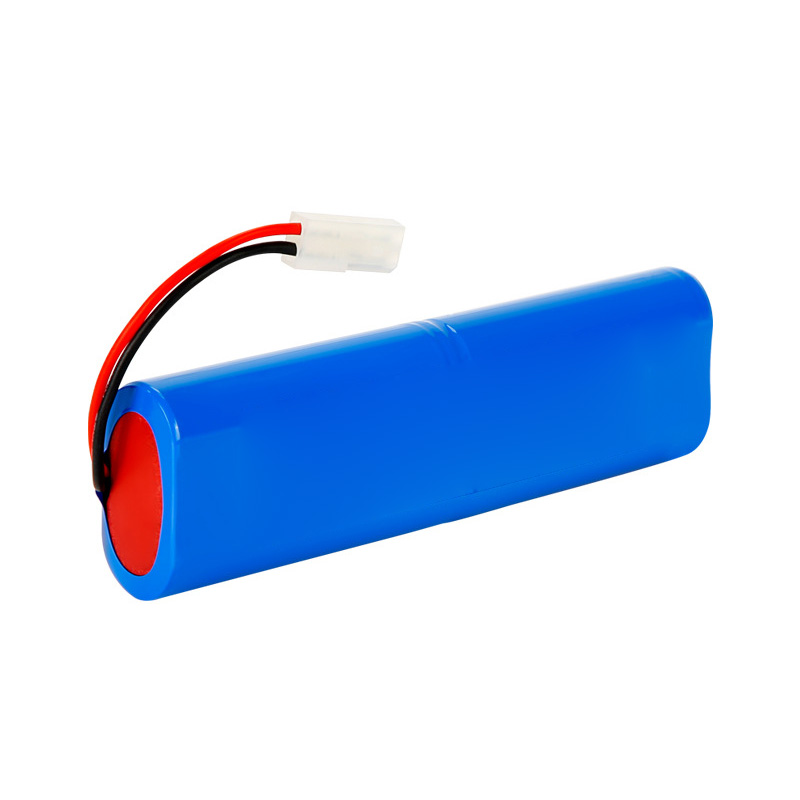

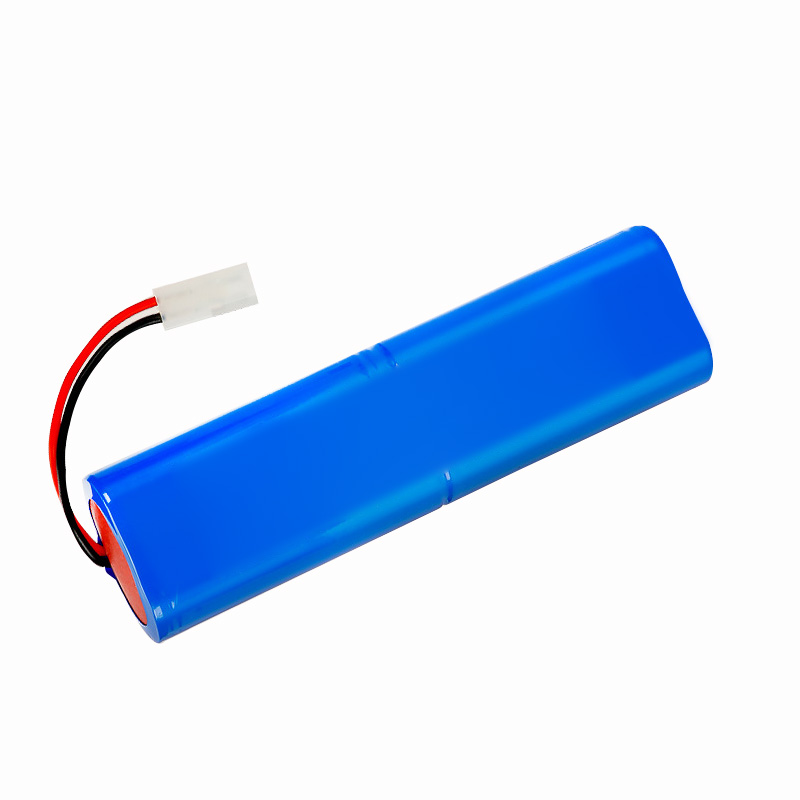

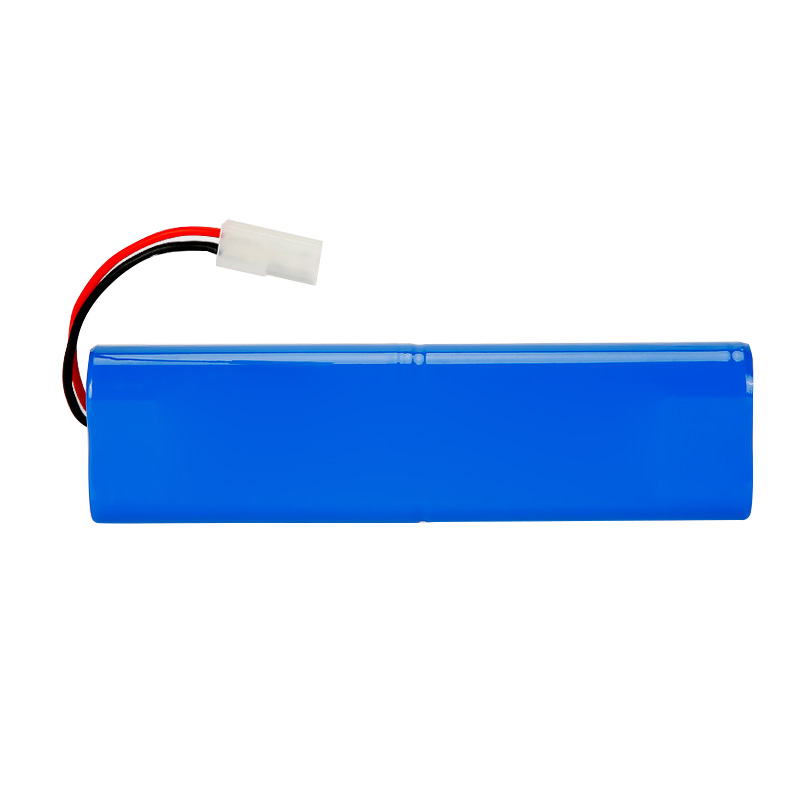

Lithium-ion Battery Pack

Lithium Battery 14.8V 3.2Ah

Optimized 4S1P High‑Output Configuration

Utilizes premium 3200 mAh 18650 cells in a 4‑series, 1‑parallel arrangement with a 6 A continuous discharge rating, ensuring stable power delivery and extended runtime for medium‑load applications.

Custom Solutions from Himax Battery Factory

VH₂P plug orientation, 100 mm 18 AWG lead wires and blue PVC housing tailored to your exact wiring and form‑factor needs—direct from our factory with competitive wholesale pricing.

Specifications

Wholesale Lithium-ion 14.8V 3.2Ah Battery Pack

Nominal Voltage

14.8V

Nominal Capacity

3.2Ah

Energy

47.36Wh

Charge Voltage

14.6V

Discharge cut-off voltage

10V

Charge Method

CC/CV

Standard Charge Current

0.2C

Max. Charge Current

0.5C

Standard Discharge Current

0.2C

Max. Continues Discharge current

0.5C

Cycle Life

500 times

Dimension

140mm x 57mm x 20mm

Weight

200g

Storage Temperature

0°C~45°C

Frequently Asked Questions

Lithium ion battery pack answers, if you do not find the answer you are looking for, please contact us. We’ll get back to you within 24 hours.

1. What is the continuous discharge capability of this 14.8V 3.2Ah lithium‑ion battery pack?

This 4S1P pack delivers a reliable 6 A continuous discharge (up to 12 A peak), ideal for devices requiring stable 14.8V 3.2Ah power.

2. Can I order a custom‑length lead for my 14.8V 3200 mAh battery pack?

Yes. Himax Battery Factory offers bespoke 18 AWG wires in custom lengths—including the standard 100 mm or any length up to 500 mm—for your 14.8V 3.2Ah pack.

3. Does this 18650‐based 14.8V battery include built‑in protection?

Absolutely. It features an integrated BMS for over‑charge, over‑discharge, short‑circuit, and cell‑balancing protection, ensuring safe operation of your 14.8V 3.2Ah lithium‑ion battery.

4. How many charge cycles can I expect from this 14.8V 3.2Ah rechargeable battery pack?

With proper CC/CV charging, this pack achieves over 500 cycles before capacity drops below 80%, making it ideal for medium‑duty applications.

5. What’s the minimum order quantity for bulk 14.8V 3200 mAh battery pack customization?

Our MOQ for 14.8V 3.2Ah lithium‑ion battery packs starts at 100 pcs, with a typical lead time of 3–4 weeks for custom‑connector batches.

Download

Didn’t find the battery you were looking for or need a customized battery please contact us.

# Download Lithium ion battery 14.8V 3.2Ah specifications
