Versatile 2S Configuration with Custom Form Factors
Combine two cells in series for 7.4V output, available in custom shapes (slim stick, rectangular pouch) and thicknesses to suit robotics, portable lighting, or communication equipment. Assembled at Himax battery factory with advanced welding.
Configure discharge rates up to 5C for mid-power applications; built-in balance leads and PCM maintain cell equilibrium, over-charge, and over-discharge protection—ensuring extended cycle life of 400+ cycles.
Specifications

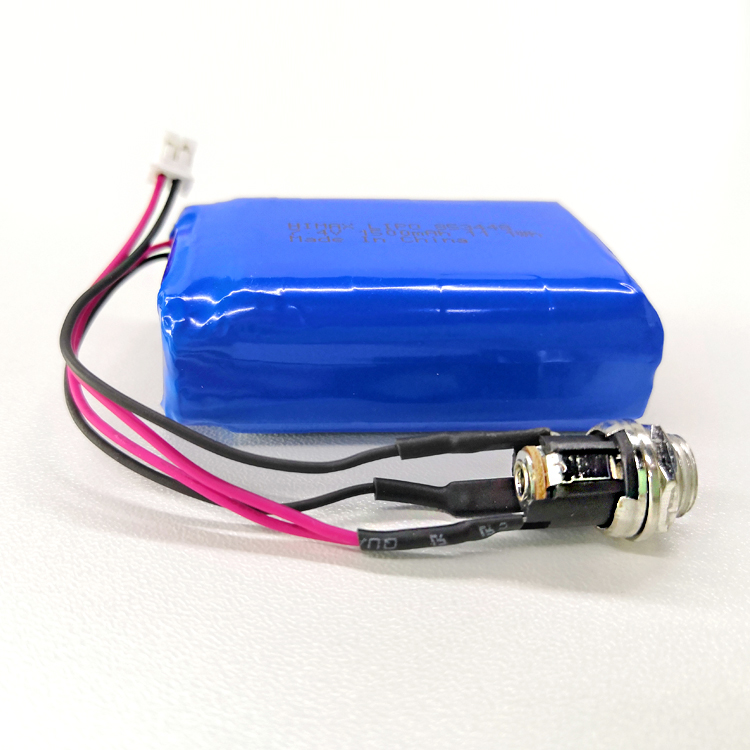

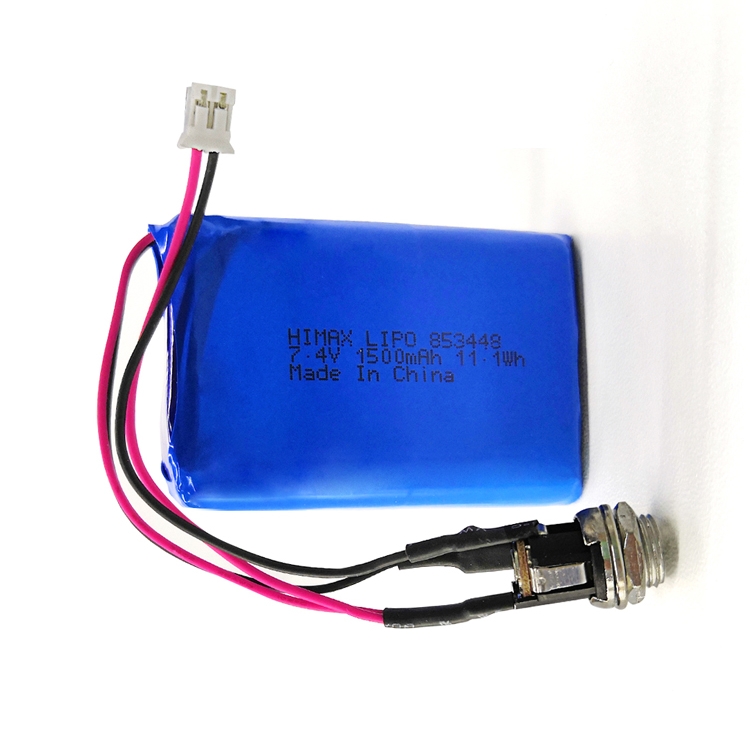

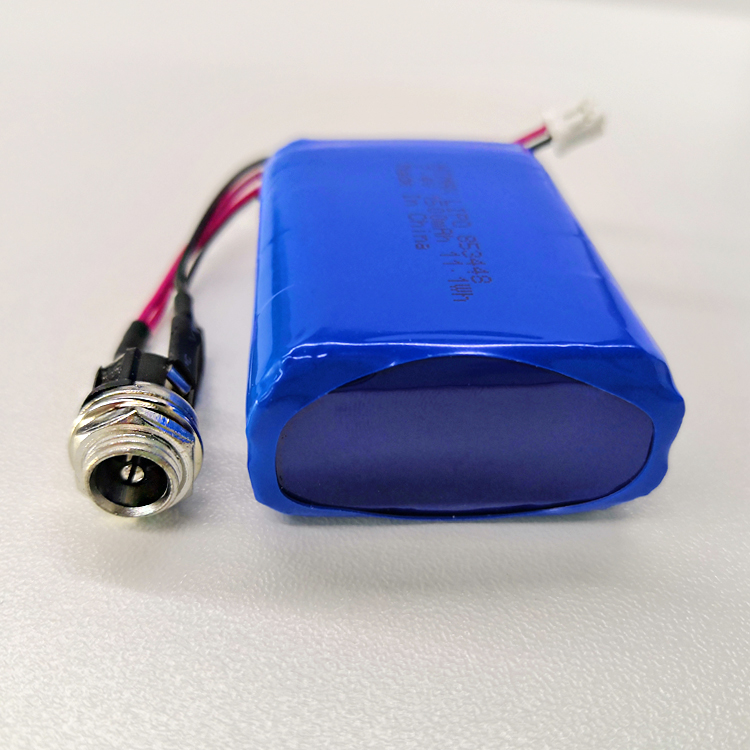

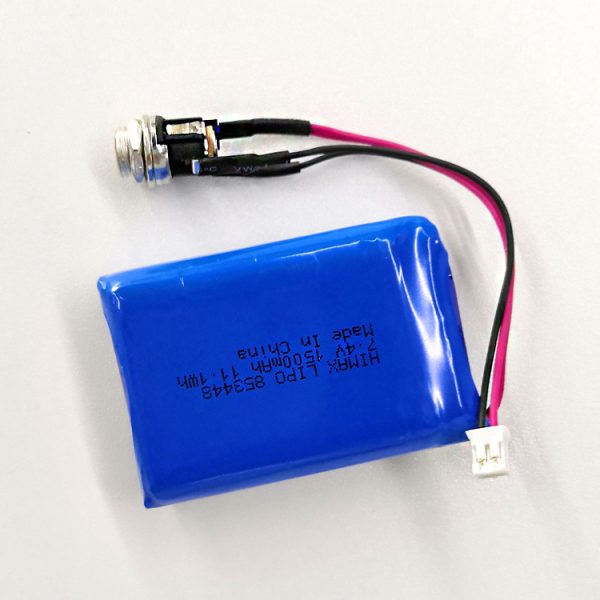

pouch cell battery 2S Lipo 7.4V 1500mAh
Nominal Voltage
7.4V
Nominal Capacity
1500mAh
Energy
11.1Wh
Charge Voltage
8.4V
Discharge cut-off voltage
6V
Charge Method
CC/CV
Standard Charge Current
300mA
Max. Charge Current
750mA
Standard Discharge Current
300mA
Max. Continues Discharge current
1500mA
Cycle Life
300 times
Dimension
Max.8.5 x34 x48mm
Weight
Approx. 30g
Storage Temperature
0°C~45°C
Frequently Asked Questions
Himax Battery, as a professional wholesale battery manufacturer, offers a wide range of lithium ion batteries, lithium iron phosphate batteries, nickel metal hydride batteries, and Lipo batteries to meet your different needs with the best ex-factory price and thoughtful customized service.
1. What is a LiPo (Lithium-Polymer) battery and how does it work?
LiPo batteries are rechargeable cells with a polymer electrolyte, offering high energy density and a nominal voltage of 3.7 V per cell (fully charged at 4.2 V and minimum safe at 3.0 V). They’re often built in series (S) and parallel (P) configurations—e.g. a “2S2P” pack uses two cells in series for higher voltage, each duplicated in parallel for greater capacity.
2. How do I safely charge a LiPo battery?
Temperature & Rate – Always charge within 0 °C to 50 °C and never exceed a 1C charge rate (i.e. 1× the pack’s capacity in amps). If you’re unsure of the safe rate, default to 1C to minimize fire risk.
Supervision & Environment – Never leave a LiPo unattended while charging; use a LiPo-safe bag or fire-resistant enclosure, and avoid charging inside vehicles or near flammable materials.
3. What’s the best way to store LiPo batteries long-term?
Storage Voltage – Keep at 40–60 % state of charge (roughly 3.8–3.9 V per cell). Storing fully charged or fully depleted cells for weeks can degrade capacity and reduce lifespan.
Safety Precautions – Place packs in fire-resistant containers or LiPo bags, and store in a cool, dry area away from direct sunlight or combustible materials.
4. How can I prolong the cycle life of my LiPo batteries?
Usage & Replacement – Expect a gradual performance drop of about 3.8 % over the first 100 cycles, and plan to replace packs after 200–300 full cycles or sooner if you see swelling or capacity loss. OEM Quality Matters – Choosing high-precision, matched-cell packs with robust protection boards and thermistors from reputable factories—like Himax with its advanced BMS balancing and tight cell tolerances—can significantly extend overall battery life.
5. Where can I purchase reliable, customizable LiPo battery packs?
For volume pricing, fast lead-times and full OEM flexibility—voltage, capacity, C-rates, connector types, wire-outs and labeling—factory-direct suppliers such as Himax are top choices. Himax’s LiPo division supports low-MOQ wholesale orders and custom engineering to fit aerospace, drone, wearable or IoT applications.
