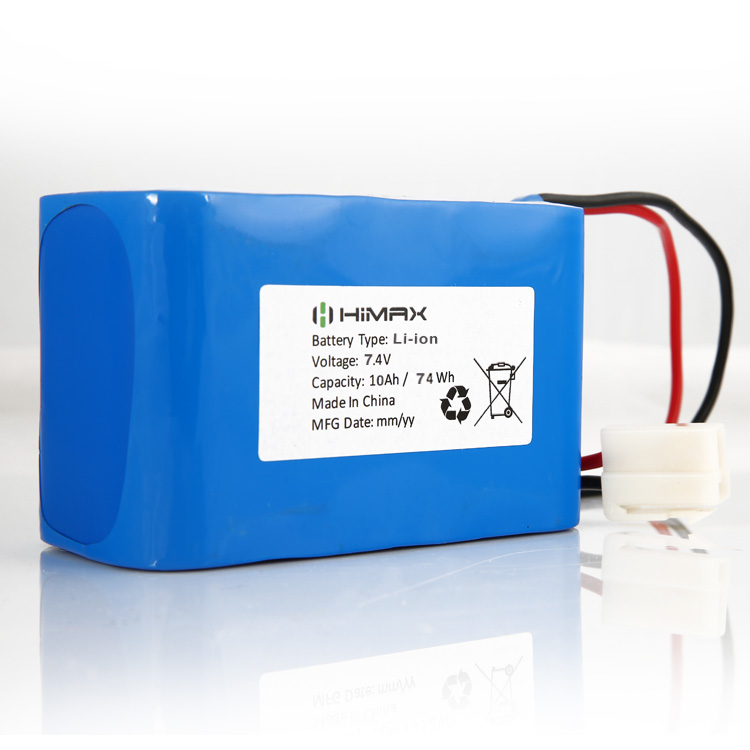

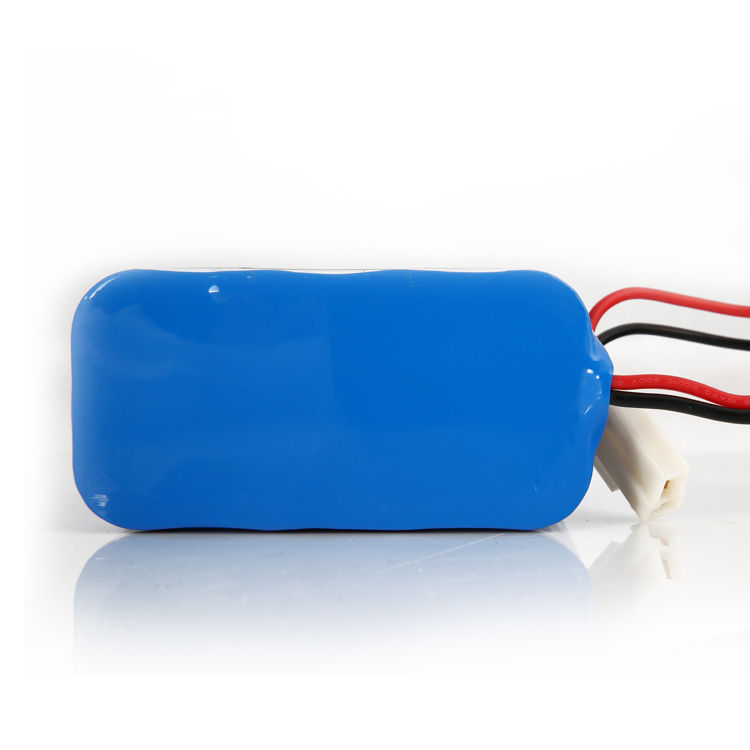

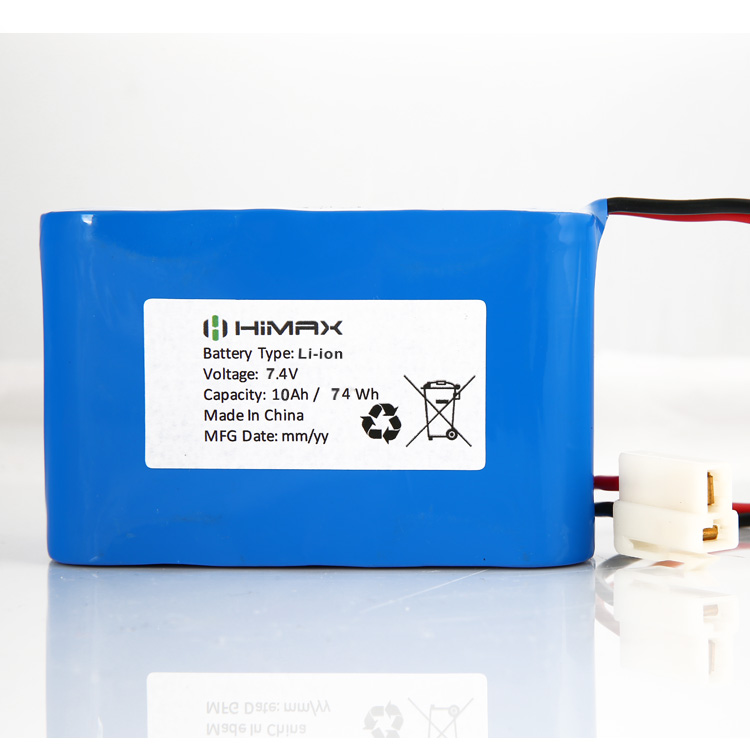

7.4 V 10 Ah Bulk Lithium‑Ion Battery Pack – OEM Factory‑Direct Module (2S4P)

Categories 7.4V Lithium Ion Battery, Lithium lon Battery

Nominal Voltage
7.4V

Nominal Capacity
10Ah

Energy
74Wh

INQUIRY TO BUY

Description
Specifications
FAQs
Download

Lithium-ion Battery Pack

Lithium Battery 7.4 V 10 Ah

7.4 V 10 Ah Li‑ion Pack (2S4P of 18650 2600 mAh Cells)

1. Advanced BMS Features: Dual over‑charge, dual over‑current plus automatic cell balancing and temperature‑compensated charge algorithm. 2. High‑Rate Pulse Discharge: 10 A continuous with 20 A pulses (2 s) for motor‑start or burst‑power loads. 3. Extended Cycle Life: ≥ 700 cycles at 50 % depth‑of‑discharge (DOD). 4. Wide Temp. Specs: −20 °C to +60 °C (discharge), 0 °C to +45 °C (charge). 5. IP‑Rated Enclosure Option: Can be sealed to IP65 for dust/water resistance in outdoor gear. 6. Premium Connector & Cabling: XT30U‑F plug with low‑loss AWG 18 UL3239 wires for minimal voltage drop. 7. OEM/ODM Support:** Factory can adjust form‑factor, connector types, wire lengths, and silk‑screened labeling to your exact specs.

Scale & Speed with Quality Gatekeepers

From CNC‑machined fixtures to robot‑welded interconnects, our high‑throughput line runs OQC at three checkpoints—plus full UN38.3 and UL Certification support. A dedicated account manager ensures your bulk orders hit the line on time, complete with customs docs, drop‑ship options and 24‑hour response.

Specifications

Lithium ion Battery 7.4V 10Ah 18650 2s4p Li-ion battery pack

Nominal Voltage

7.4V

Nominal Capacity

10Ah

Energy

74Wh

Charge Voltage

8.4V

Discharge cut-off voltage

Charge Method

CC/CV

Standard Charge Current

0.2C

Max. Charge Current

0.5C

Standard Discharge Current

0.2C

Max. Continues Discharge current

Cycle Life

500 times

Dimension

L149*W20.5*H73mm（MAX）

Weight

400g

Storage Temperature

-10°C~45°C

Frequently Asked Questions

Lithium ion battery pack answers, if you do not find the answer you are looking for, please contact us. We’ll get back to you within 24 hours.

1. What are the core specs of this bulk lithium battery?

It’s a 7.4 V 10 Ah pack (2S4P of 18650 2600 mAh), with 5 A charge, 10 A continuous discharge, and XT30U‑F connector.

2. Can I order this pack “factory‑direct” with custom specs?

Yes—Himax handles everything from CNC fixtures and robot‑welded interconnects to wire lengths, IP‑rated housings, and branding in high‑throughput runs.

3. What advanced BMS features are included?

Dual over‑charge, dual over‑current, passive cell balancing, temperature‑compensated charging and 65 °C thermal cutoff—all tested to UN38.3 and UL standards at Himax’s OQC gates.

4. How long is the expected cycle life?

Designed for ≥ 700 cycles at 50 % DOD, with Himax’s matched‑cell selection and QA processes ensuring minimal capacity fade.

5. What after‑sales support does Himax provide?

Every order comes with a dedicated account manager, 24 hr technical hotline, customs documentation, and optional on‑site training for your engineers.
