10.8V 5Ah Samsung 21700 Lithium-Ion Battery Pack with 3A BMS, Custom OEM & Wholesale

Nominal Voltage
10.8V

Nominal Capacity
5Ah

Energy
54Wh

Lithium-ion Battery Pack

Lithium Battery 10.8V 5Ah

High-Energy Samsung 21700 Cells for Enduring Power

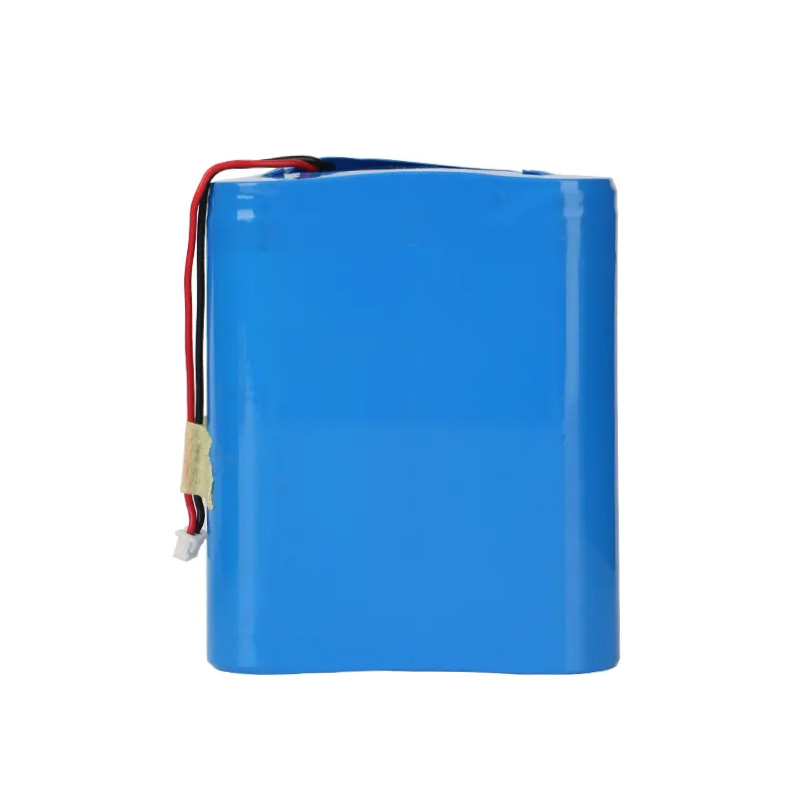

This 10.8V 5Ah pack uses Samsung 21700 50E cells in a 3S1P configuration, delivering a nominal energy of 54Wh with exceptionally low internal resistance. The integrated protection board provides 3A continuous current support, over-current cutoff, over-charge/discharge protection, and short-circuit safety. Blue PVC housing resists abrasion and provides dielectric strength, while the 153 mm 22 AWG output leads maintain minimal voltage drop. Pre-charged to 50%, it’s ready for immediate use in handheld tools, portable medical devices, or IoT gateways.

Himax Custom OEM & Wholesale Advantage

Himax can tailor wire lengths, connector types, state-of-charge presets, and housing colors to your exact spec, backed by CE/IEC certification. Enjoy factory-direct pricing, volume discounts, and dedicated support from prototype through mass production.

Specifications

10.8V 5Ah Lithium-ion Rechargeable Batteries Wholesale
Nominal Voltage
10.8V
Nominal Capacity
5000mAh
Energy
54Wh
Charge Voltage
12.6V
Discharge cut-off voltage
7.95V
Charge Method
CC/CV
Standard Charge Current
1A
Max. Charge Current
2.5A
Standard Discharge Current
1A
Max. Continues Discharge current
2.5A
Cycle Life
500 times
Dimension
MAX. 149 *20.5*73mm
Weight
400g
Storage Temperature
-10°C~45°C

Frequently Asked Questions

Lithium ion battery pack answers, if you do not find the answer you are looking for, please contact us. We’ll get back to you within 24 hours.
1. What are the continuous and peak discharge currents?
This 10.8V 5Ah pack supports 3 A continuous discharge (via its BMS) and up to 6 A peak for short bursts.
2. Can I order custom wire lengths or connector types?
Yes, Himax offers full OEM customization—including wire length, connector selection, and housing color—at wholesale pricing.
3. What safety protections are built in?
The integrated 3 A BMS provides over-charge, over-discharge, short-circuit, and over-current protection.
4. Is the battery delivered pre-charged?
Yes, each pack ships at approximately 50 % state-of-charge for safe transport and immediate deployment.
5. How do I request bulk pricing or a sample?
Contact Himax’s sales team with your order quantity to receive tiered wholesale rates or request a prototype sample.
