When it comes to energy storage, few technologies match the safety, longevity, and performance of a LiFePO4 Battery. Whether you’re powering a 12V trolling motor, a 24V off-grid solar array, or a 48V backup system, understanding your LiFePO4 Battery’s voltage and state-of-charge (SOC) is critical. In this guide, you’ll learn how to read a complete voltage chart, optimize charging, and maximize the life of your LiFePO4 Battery bank.
Basics About LiFePO4 Battery Voltage
Key Definitions for Your LiFePO4 Battery
· Nominal Voltage: 3.2 V per cell (4 cells = 12.8 V system)
· Fully Charged Voltage: 3.65 V per cell (14.6 V system)
· Discharge Cutoff Voltage: 2.5 V per cell (10 V system)
· Storage Voltage: 3.2–3.4 V per cell for long-term health
· Deep Discharge: Drawing below cutoff that can damage your LiFePO4 Battery

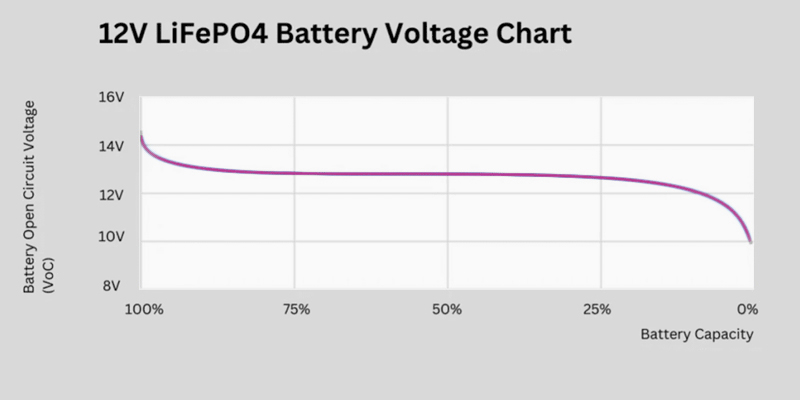

LiFePO4 Battery Voltage Chart for 12V, 24V & 48V Systems
Why Voltage ↔ SOC Matters on a LiFePO4 Battery
Unlike lead-acid batteries, a LiFePO4 Battery holds a flat voltage plateau between roughly 50 % and 80 % SOC. That makes precise voltage readings essential, since small changes can represent large capacity swings.
Voltage ↔ SOC Table: 12V LiFePO4 Battery
| Voltage (V) | SOC (%) | Notes |
| 14.60 | 100 | Fully charged (absorption end) |
| 13.40 | 80 | Bulk → absorption transition |
| 12.80 | 50 | Nominal system voltage |
| 12.20 | 20 | Low-battery alert |
| 10.00 | 0 | Cutoff/disconnect |

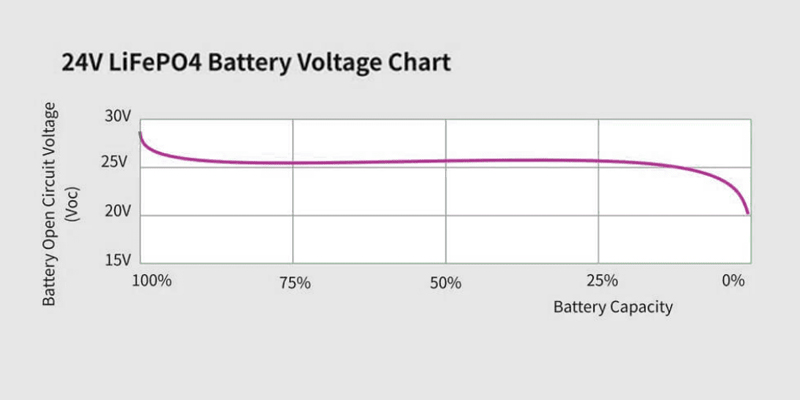

Voltage ↔ SOC Table: 24V LiFePO4 Battery
(Multiply 12 V values by 2.)

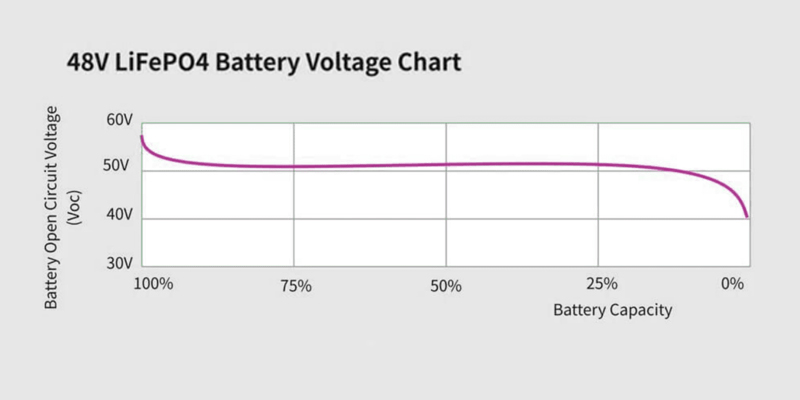

Voltage ↔ SOC Table: 48V LiFePO4 Battery
(Multiply 12 V values by 4.)
Charging Parameters for Your LiFePO4 Battery
Bulk Phase & Current Limits
Charge at up to 0.5 C (50 A for a 100 Ah LiFePO4 Battery) until you hit the absorption voltage.
Absorption Phase: Voltage Hold
Maintain 3.60–3.65 V per cell (14.4–14.6 V system) until current tapers below 0.05 C.
Float Stage: Optional for LiFePO4 Battery
If your charger supports float, use 13.6–13.8 V (12 V system) sparingly to top off without stress.
Why No Equalization?
LiFePO4 chemistry doesn’t require—and can be harmed by—the high-voltage equalization pulses used on flooded batteries.
LiFePO4 Battery Charge & Discharge Cycle
- Constant Current (CC): Bulk charging your LiFePO4 Battery at a steady rate.
- Constant Voltage (CV): Holding absorption voltage as charging current falls.
- Discharge: Draw power until reaching your cutoff voltage—avoid going below 20 % SOC regularly to preserve cycle life.
How Voltage Affects LiFePO4 Battery Performance
· Capacity vs. Voltage: Below 12.8V (50 % SOC), capacity declines rapidly.
· Depth of Discharge (DoD): Keeping DoD ≤ 80 % yields 2,000+ cycles on a quality LiFePO4 Battery.
· Temperature Sensitivity: In cold conditions, your battery’s internal resistance rises—use a charger with temperature compensation when possible.
Storing & Maintaining Your LiFePO4 Battery
· Ideal Storage SOC: 40–60 % (12.8–13.3V system)
· Self-Discharge: Under 3 % per month, but schedule a top-off every 6–12 months.
· Periodic Maintenance: Perform a brief CV charge to 3.4V per cell (13.6V system) before extended idle periods.
Accurately Monitoring Your LiFePO4 Battery

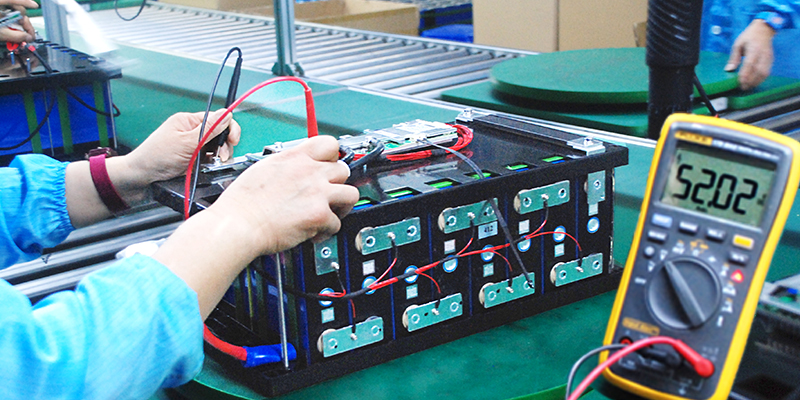

· Multimeter Checks: Rest your battery for 30 minutes, then measure voltage for a rough SOC estimate.
· Battery Monitors: Track amp-hours in/out to calculate SOC directly.
· Charge Controller Read-outs: Many MPPT controllers display voltage and Ah usage.
· App-Enabled BMS: Bluetooth-connected BMS modules show individual cell voltages, SOC, and temperature in real time.
Conclusion & Next Steps
By following this Complete LiFePO4 Battery Voltage & SOC Guide, you’ll maximize performance, safety, and lifespan of your 12V, 24V, or 48V LiFePO4 Battery setup.
· Download our free LiFePO4 Battery Voltage/SOC Cheat Sheet
· Contact Himax Battery for custom-engineered LiFePO4 Battery systems tailored to your exact needs.
FAQ
Q: What voltage should I store my LiFePO4 Battery at?
A: 3.3–3.4 V per cell (13.2–13.6 V system), with a top-off every 6–12 months.
Q: Can I push a LiFePO4 Battery above 3.65V per cell?
A: No—exceeding 3.65 V risks overcharge damage and heat buildup.
Q: How often should I recalibrate my SOC readings?
A: After ~50 cycles or anytime your voltage-based SOC drifts significantly from amp-hour tracking.
Equip your system with the right LiFePO4 Battery knowledge—and trust Himax Battery to power your next adventure with industry-leading LiFePO4 technology!
